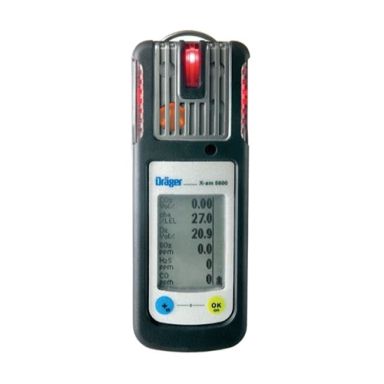

X-am 5600 Portable multi gas detector (up to 6 gases)

X-am 5600 Portable multi gas detector (up to 6 gases)

The portable multi gas detector X-am 5600 detects up to 6 gases simultaneously thanks to an innovative combination of infrared sensors (for explosive gases and CO2) with DrägerSensor XXS electrochemical sensors for the detection of AsH3, B2H6, Br2, Cl2, ClO2, CO, CO2, F2, H2, H2S, HCN, NH3, NO, NO2, O2, O3, PH3, SiH4, SO2, organic vapors, and amines.

Customizable 6-gas detector with a wide selection of interchangeable infrared and electrochemical sensors
Rugged waterproof and dustproof design, ATEX Zone 0 certified
Data logger: Transmission via infrared interface
Optional clip-on pump for remote gas sampling
Compatible with the Dräger X-zone 5500 area monitor

Additional information

Thanks to their high measurement stability, resistance to contamination, and long shelf life of up to 8 years, the Dräger infrared sensors compatible with the portable multi gas detector X-am 5600 allow explosive or flammable hydrocarbons and carbon dioxide (CO2) measurement with high accuracy.

Its rubber housing provides increased impact resistance, and its high ingress rating (IP67) makes it waterproof and dustproof. The X-am 5600 multi gas detector features a 90dB audible, illuminated, and vibrating alarm to alert users to gas hazards. Moreover, its built-in data logger can save measured values for later analysis of incidents.

An optional external sampling pump can be employed for access clearance measurements in tanks, manholes, or confined spaces. The X-am 5600 detector can be combined with the Dräger X-zone 5500 monitor to perform zone monitoring (gas detection monitor) in large areas. This interesting Dräger concept gives the possibility for the same device to be used as a stand-alone handheld device or as an area monitor.

Main explosive gases and CO2 (infrared cells)* detected: Butane (C4H10) - Carbon dioxide (CO2) - Methane (CH4) - Pentane (C5H12) - Propane (C3H8)

Main toxic gases (DrägerSensor XXS)* detected: Ammonia (NH3) - Arsine (AsH3) - Bromine (Br2) - Carbon monoxide (CO) - Chlorine (CL2) - Chlorine dioxide (ClO2) - Diborane (B2H6) - Fluorine (F2) - Hydrogen (H2) - Hydrogen cyanide (HCN) - Hydrogen sulfide (H2S) - Nitric oxide (NO) - Nitrogen dioxide (NO2) - Oxygen (O2) - Ozone (O3) - Phosgene (COCL2) - Phosphine (PH3) - Silane (SiH4) - Sulfur dioxide (SO2)

Main organic vapors (DrägerSensor XXS)* detected: Acetylene (C2H2) - Ethanol (C2H6O) - Ethylene (C2H4) - Ethylene oxide (C2H4O) - Formaldehyde (CH2O) - Styrene (C8H8)

See the complete list of gases detected in the product sheet
